Identifyer
Identifyer

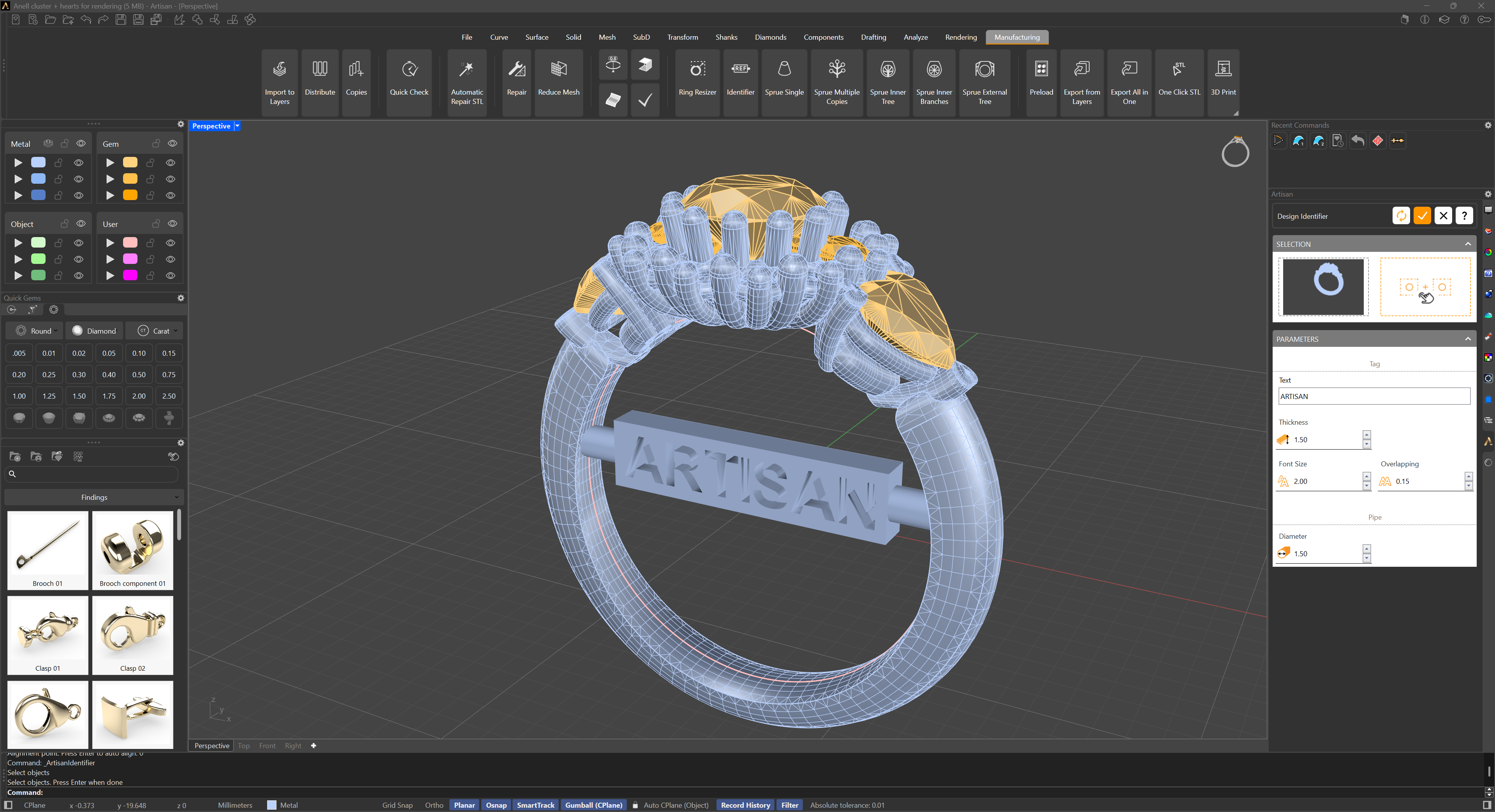

The Identifyer command allows you to create a custom label to identify a ring, with configurable text and a connecting cylindrical rod.
- Text Configuration
- Enter the desired text for the label in the command panel.
- Adjust the text size to fit your design.
- Cylinder Configuration
- Specify the thickness of the cylinder connecting the label to the ring’s interior.
- Define the start and end points of the cylinder to avoid intersections with critical design features, such as holes or engravings.
- Applications
This command is particularly useful for identifying and differentiating rings of the same model with varying sizes, ensuring clear organization in the design process.
